Body:

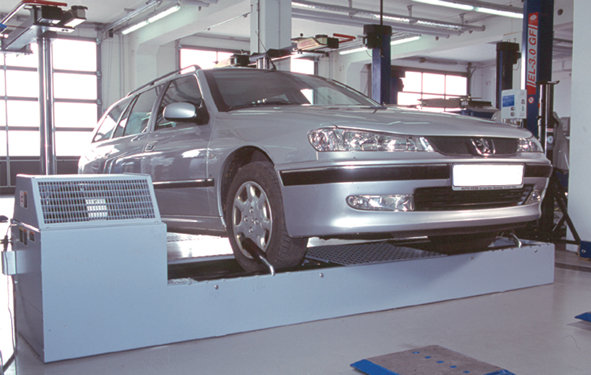

Roller Set:
- Above-floor version can be used with drive-on ramps (option) or with garage lifts in connection with Mobility Kit (option)
- Self-supporting closed roller set frame
- Pneumatic car lifting device with brake for easy entry and exit
- Electric eddy current brake with flywheel for mechanical inertia
- Belt coupled rollers and eddy current brake
- AC-Motor including control and power electronics
- 4 eyebolts (transport aid)
- 4 express floor anchors to fix roller set in foundation or garage floor
- Electro-static powder painting
- blue, RAL 5010
- dark grey, RAL 7016
Roller Set in conjunction with emission test analyzer or external PC:
- Rolling resistance simulation for emission tests ASM-5015 + ASM-2525 (Acceleration Simulation Mode) according to the BAR '97 specifications
- Rolling resistance simulation for transient emission tests according to current vehicle cycles (Attention: vehicle inertia simulation in deceleration mode limited to 2000 lbs (900 kg)
- Determination and compensation of equipment's own losses ('Parasitic Losses') according to BAR '97 specifications. Acceleration of the roller set with built-in AC-Motor at approx. 50 km/h with subsequent performance of roll-off tests ('Coast-Down').
- Performance tests (wheel performance) in the following operating functions: constant speed, constant tractive force
- Control of equipment through serial interface RS 232 (e.g. Emissions analyzer or external PC)
