Description:
Basic Equipment:- Tachograph tester integrated in brake tester (only in conjunction with PC)

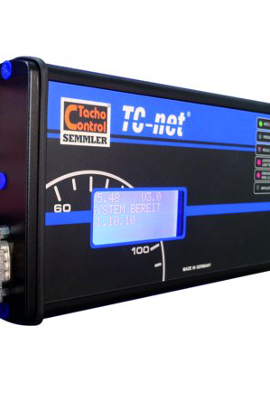

- Electronic control unit TCS made of impact resistant aluminium (suitable for workshops) with D-Sub 25p/D-Sub 9p port
- Entire operation via integrated time and data display as well as your existing PC (operating system: Windows)
- Prepared for the new tachograph systems (smart-card tachograph)
- Complete measurement and programming of tachograph models 1311, 1314, 1318, 8400, FTCO 1319, MTCO 1324, TVI 2400 incl. integrated clock measurement
- 4-row LCD, 16-digit; illuminated background
- Mobile and/or stationary measuring device; used stationary, for example, in brake tester with its computer. Road measurement is available as an option.
- Print-out of entire test log
- Data storage for customer and vehicle data
- Multi-lingual
- Tachograph testing in accordance with § 57 b and 57 d StVZO (German Road Traffic Regulations)
- Determination of ground speed and distance pulse number for all mechanical and electronic tachographs (1314, 1318, TVI 8400, Actia-Poltik 028)
- Fault display in %
- Reading out of constants
- Step chart of electronic tachographs when installed
- Input test incl. print-out
- Speed limiter test (GBA) in conjunction with electronic tachographs
- Instrument testing incl. tolerance print-out
- Programming of FTCO 1319 and MTCO 1324, TVI 2400, prepared for EFAS (Grundig), SmarTach (Actia), DTCO (smart-card tachograph)
- Print-out and storage of test seals incl. date, test station number, address, measurement values, vehicle identification number etc.
- Road measurement is possible as well.
- Data exchange with various software systems is possible (upon request).
Contenu de la livraison:
- TCS control unit
- TCS software for measurement equipment in accordance with § 57 b and 57 d StVZO (German Road Traffic Regulations), EEC 3821/85 and EEC 92/24 Licence: for your test station -SINGLE WORKSTATION consisting of:
- TCS CD-ROM with autostart (setup) incl. operating instructions
- Licence code for TCS software
- Test lead for mechanical tachograph (1 m)
- Test lead for electronic tachograph with earth terminal and jack plug (1 m)
- Cable for measurement and programming FTCO 1319 (1 m)
- Cable for MTCO 1324 4p/9p checking
- Cable for TVI 2400 checking (2 m)
- Flat film adapter cable for step chart TVI 2400 (0.2 m)
- Ribbon cable for step diagram 1314
- Ribbon cable for step diagram 1318
- Clock tester for tachographs
- Light barrier integrated in roller set
- Inductive generator with plug
- Reflection foil 30 cm
- Magnetic reflection belt holder
- Power supply unit with plug
- Extension for test lead TCS (7 m)
- Wall-mounted retainer set for TCS control unit
- Special cable for position encoder 4p (20 m)
- Special cable for LS 3p (20 m)
- Cable for TCS - BPS connection
- Test log (20 sheets) -German
- Cable support
- Ground connection for cigarette lighte
